Sprockets & Gears
Precision Timing Pulleys, Sprockets & Gears – Reliable Power Transmission Solutions
We specialize in manufacturing high-precision timing pulleys, sprockets, and gears, engineered to meet ISO, ANSI, and DIN standards. Our products deliver zero-slip synchronization, high load capacity, and long service life, serving diverse industries including CNC machinery, robotics, automotive, agriculture, and industrial automation. Custom machining available for unique specifications.
– Timing pulley
– Sprocket
– Gear
Type
| timing pulley | Material | Size |
| Special for motorcycles | 42CrMo4+QT | 80 * 27 |
| Conical hole with conical sleeve | aluminium alloy | 180 * 39 |
| durionise | C45 | 112 * 90 |
| sprocket | Material | Size |
| sprocket for double chain | C45 | 220 * 53 |
| Sprocket pulley | C45 | 80 * 100 |
| Internal spline sprocket | C45 | 226 * 58 |
| Gear | Material | Size |
| For food machinery | 304 | 226 * 12 |
| Cold extruded metallurgical gears | C45 | 30 * 35 |

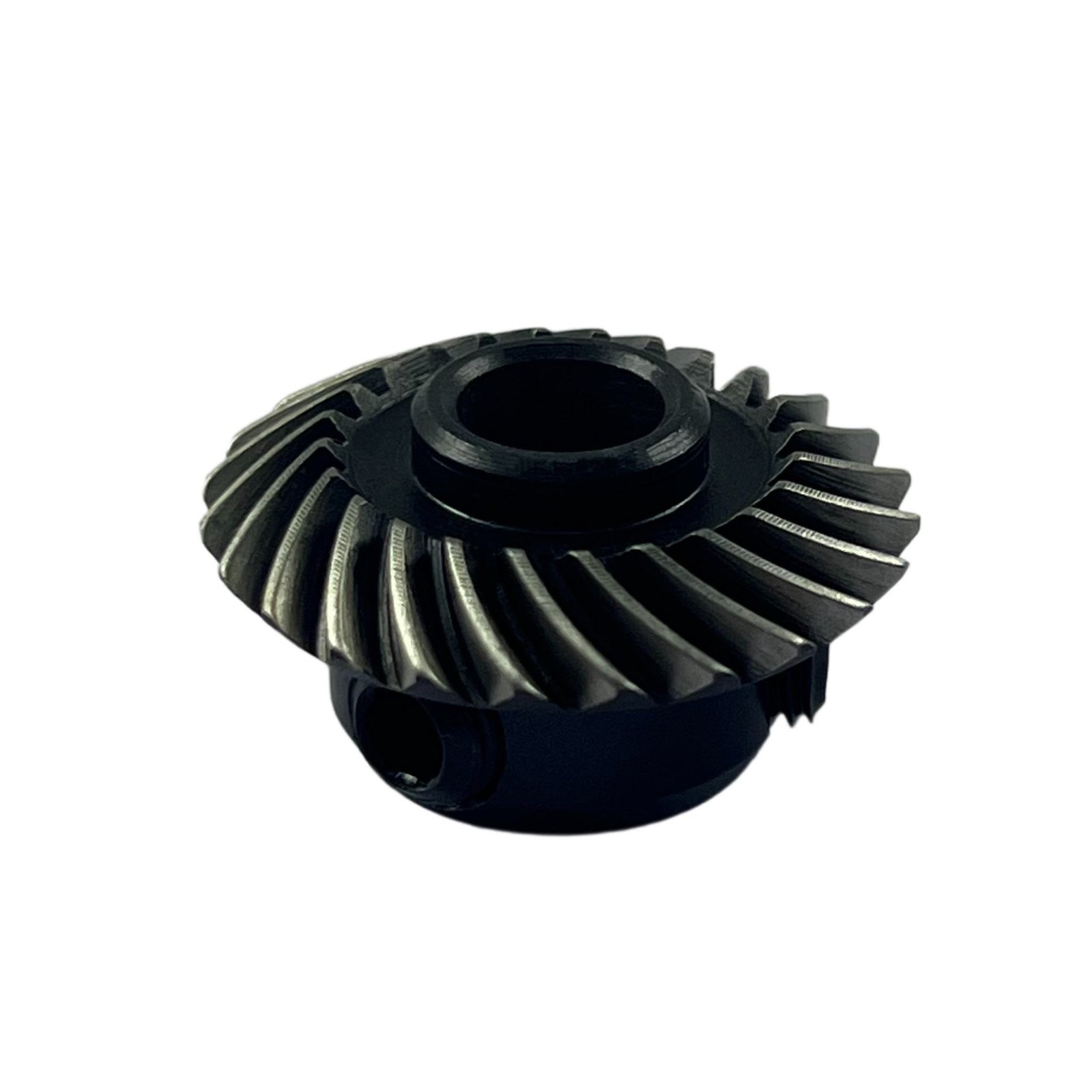

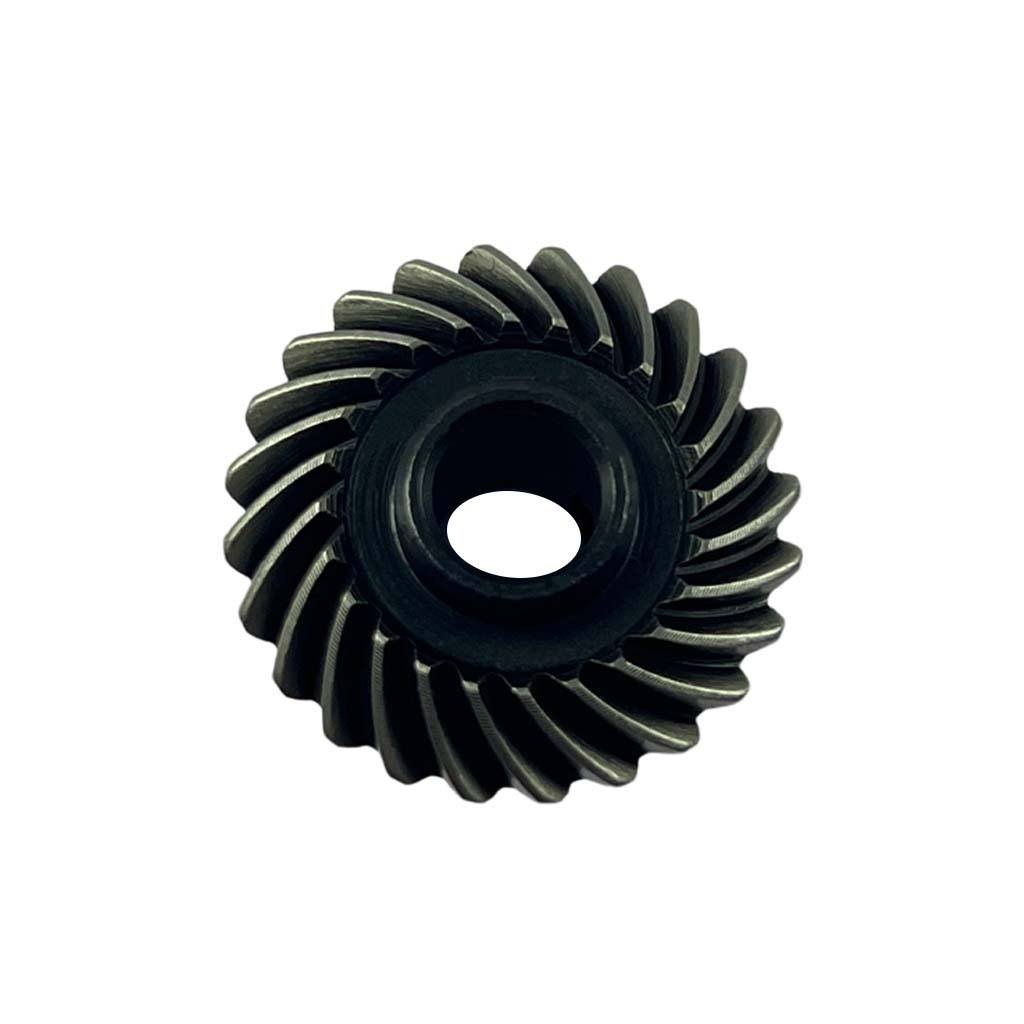

| Nylon bevel gear | Nylon + C45 | 48 * 28 |

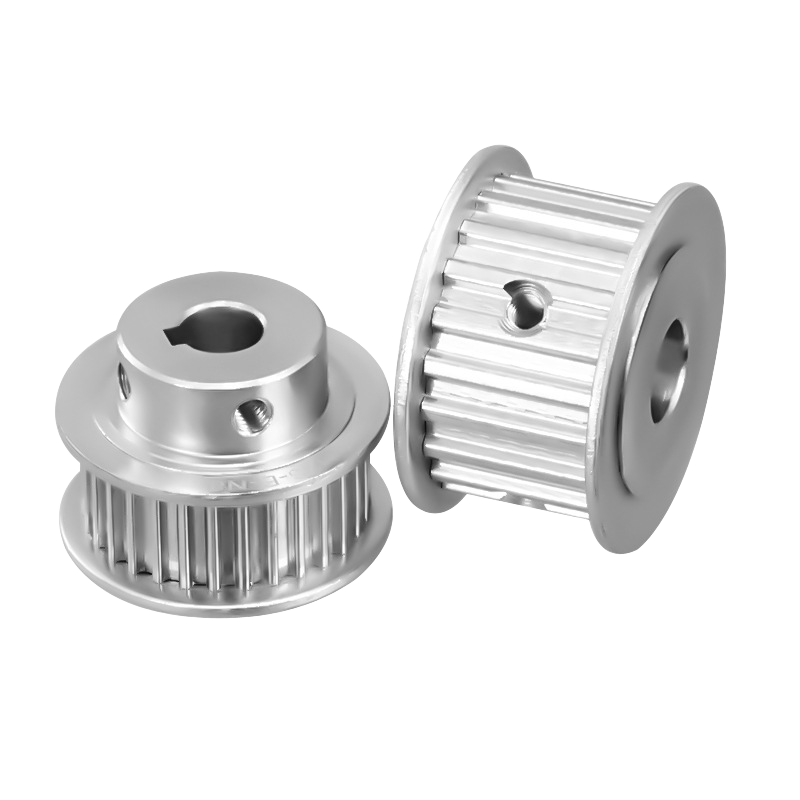

Timing Pulley | High Precision Synchronous Drive Components
Product Overview
Our timing pulleys are precision-engineered power transmission components designed for zero-slip synchronous drive systems. Featuring accurately machined tooth profiles (trapezoidal T/AT, curvilinear HTD/STS/GT) and strict pitch control (MXL, XL, L, H, 3mm, 5mm, 8mm), they ensure 1:1 exact speed ratio and ultra-low backlash for CNC machines, robotics, packaging lines, and automotive systems. As a professional timing pulley manufacturer, we prioritize precision and durability in every product.
Key Specifications
- Tooth Profiles: Trapezoidal (T/AT), Curvilinear (HTD/STS/GT)
- Pitch Sizes: MXL, XL, L, H, 3mm, 5mm, 8mm, custom pitches available
- Materials: Aluminum alloy, carbon steel, stainless steel, brass
- Surface Treatment: Anodizing, black oxide, zinc plating, induction hardening
- Bore Options: Finished bore, pilot bore, Taper-Lock, QD bushings
- Designs: Single flange, double flange (prevents belt misalignment)
- Standards: ISO, DIN compliant
Key Features
- Zero slip & precise synchronization for stable power transmission
- Low noise & vibration, suitable for high-precision equipment
- High efficiency (up to 98%), reducing energy loss
- Custom sizes & tooth profiles to meet unique application needs
- Wear-resistant & corrosion-proof surface treatment, extending service life
Applications
CNC machinery, industrial robots, 3D printers, textile equipment, packaging machines, automotive engines, conveyor systems, medical equipment, and more.
Sprocket | Heavy Duty Roller Chain Sprockets for Industrial Use
Product Overview
Our sprocket wheels are high-strength toothed components engineered for positive chain drive systems. Manufactured to ANSI B29.1 & ISO 606 standards, they feature precision-cut teeth that perfectly mate with roller chains (04B, 06B, 08B, 10B, 12B, 16B, 20B, 24B, 28B, 32B, 40B, 48B, 56B, 64B, 72B) for reliable power transmission in heavy-duty industrial applications. Our sprockets are designed to withstand high torque and low speed, making them an ideal alternative to belt drive systems.
Key Specifications
- Chain Compatibility: 04B, 06B, 08B, 10B, 12B, 16B, 20B, 24B, 28B, 32B, 40B, 48B, 56B, 64B, 72B (custom compatible chains available)
- Materials: Carbon steel, alloy steel, cast iron
- Heat Treatment: Hardening & tempering for enhanced wear resistance
- Bore Options: Pilot bore, finished bore
- Designs: Single-strand, double-strand, multistrand; hub designs available
- Standards: ANSI B29.1, ISO 606 compliant
Key Features
- High load capacity & durability, suitable for heavy-duty applications
- Precise tooth engagement, ensuring smooth power transmission
- Resistant to wear & fatigue, extending service life
- Easy installation & maintenance, reducing downtime
- Custom bore & hub configurations to fit diverse shaft sizes
Applications
Conveyors, agricultural machinery, construction equipment, material handling, mining, motorcycles, bicycles, printing machinery, and other heavy-duty industrial equipment.

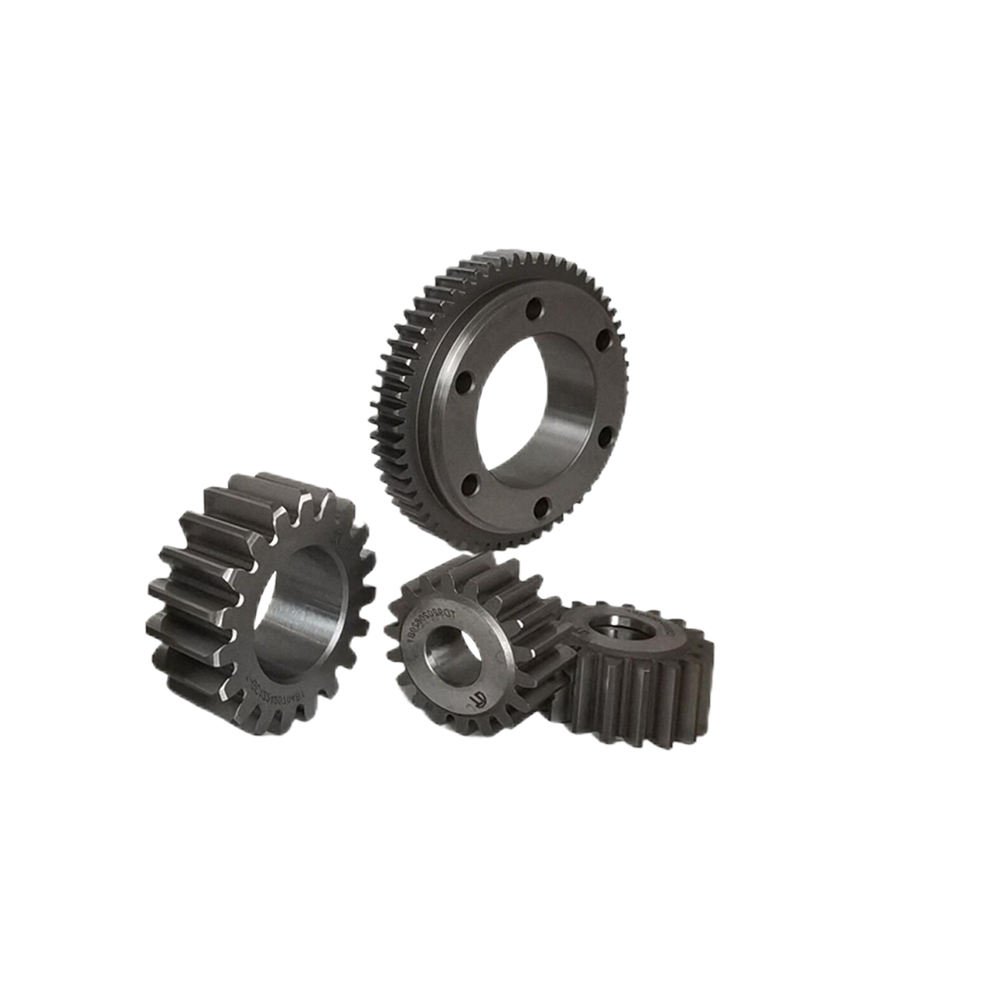

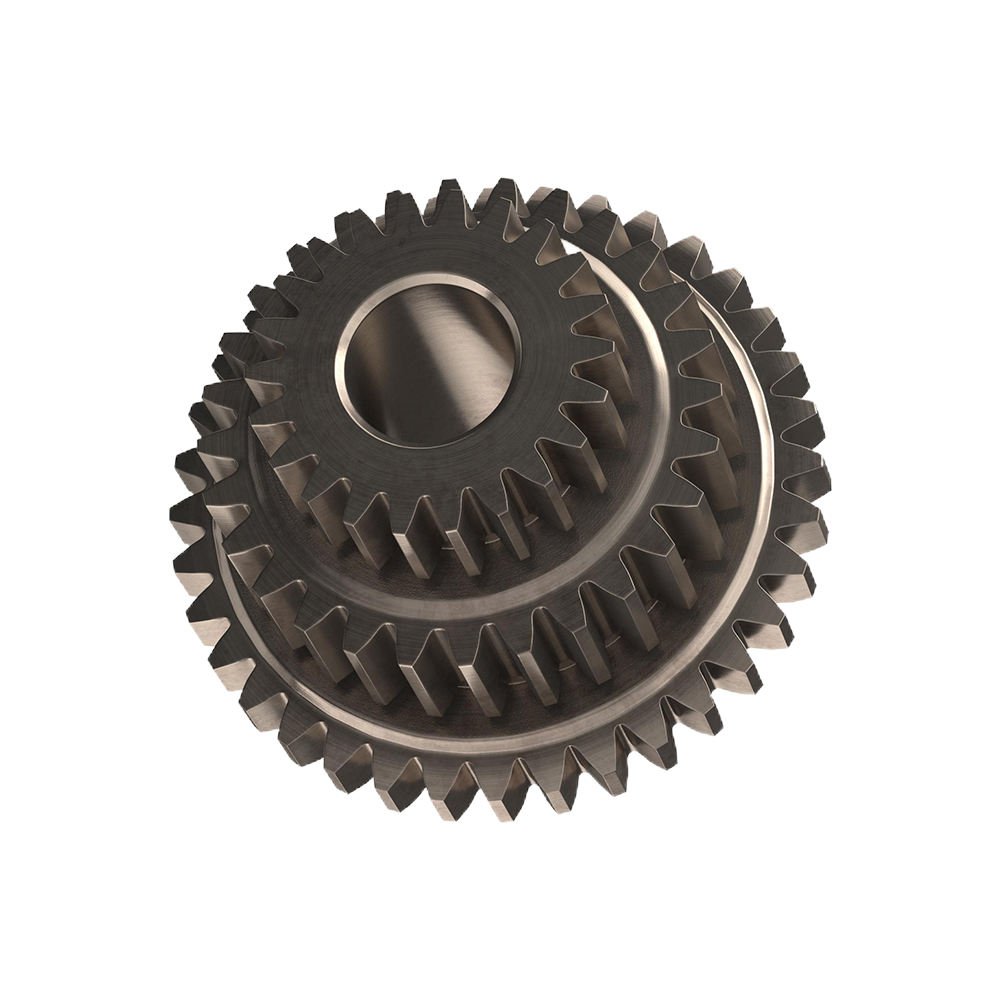

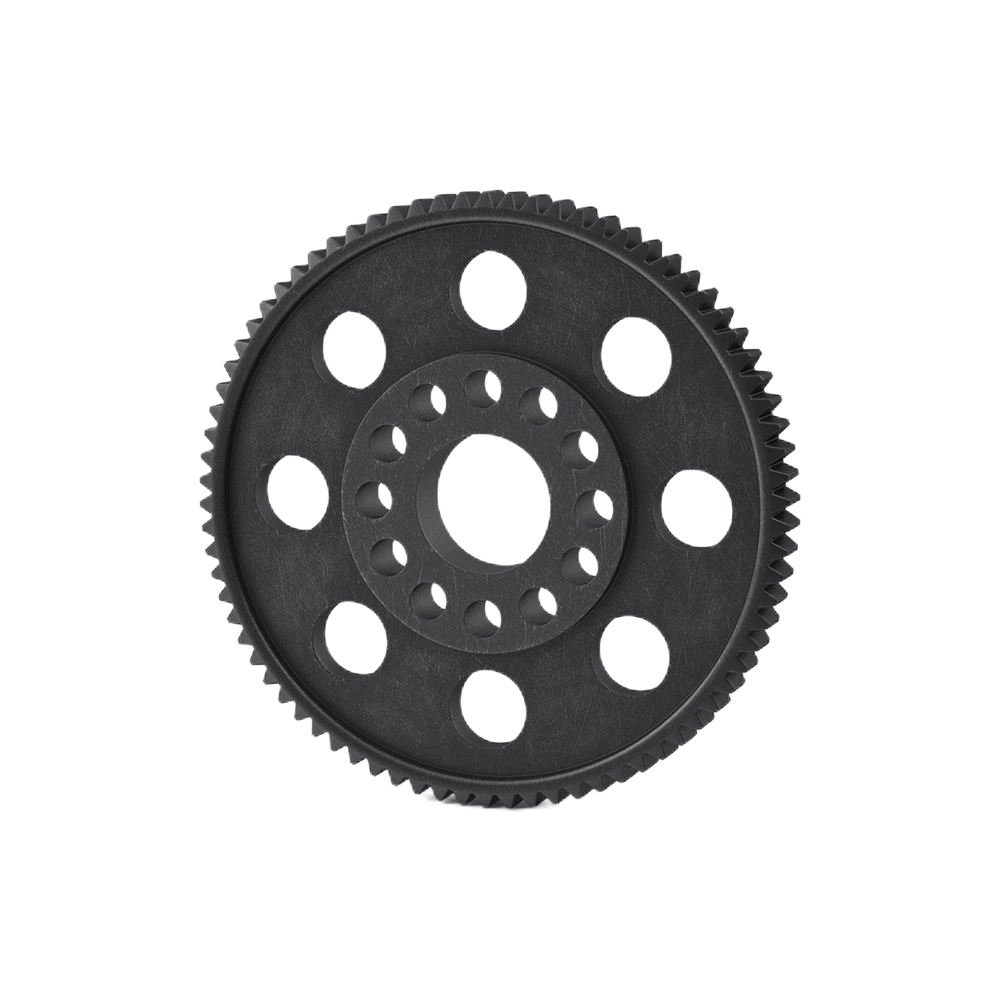

Gear | Precision Gears for Torque Transmission & Motion Control
Product Overview

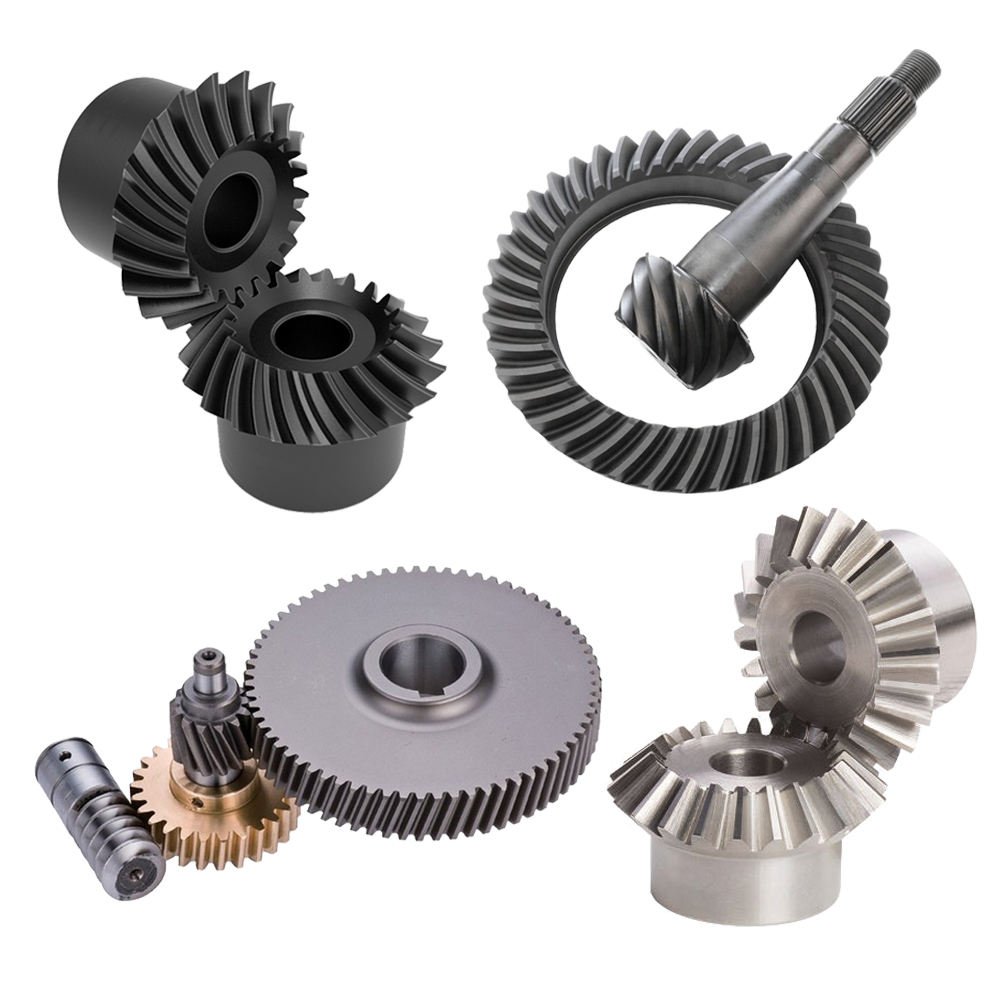

Our precision gears are high-performance mechanical components designed for efficient torque transmission & motion control. We manufacture a full range of gear types including spur gears, helical gears, bevel gears, worm gears, and gear racks, engineered to meet AGMA, ISO, and DIN standards for industrial machinery, automotive, robotics, and aerospace applications. With advanced machining processes, our gears deliver exceptional precision and reliability.
Key Specifications
- Gear Types: Spur gears, helical gears, bevel gears, worm gears, gear racks
- Materials: Alloy steel, carbon steel, stainless steel, brass
- Machining Processes: Hobbing, shaping, grinding, heat treatment
- Customization: Custom modules, pressure angles, bore sizes, and tooth counts
- Standards: AGMA, ISO, DIN compliant
Key Features
- High precision & low backlash, ensuring accurate motion control
- Smooth & quiet operation, suitable for high-precision equipment
- High torque transmission capacity, meeting industrial demands
- Exceptional wear resistance, extending service life
- Custom design & manufacturing for unique application requirements
Applications
Gearboxes, machine tools, automotive transmissions, robotics, elevators, pumps, industrial automation, aerospace equipment, and medical devices.
Frequently Asked Questions (FAQ)
- Q: Can you provide custom timing pulleys, sprockets, or gears? A: Yes, we offer full custom machining services. You can provide your specifications (tooth profile, pitch, bore size, material, surface treatment, etc.), and we will manufacture products that meet your exact needs.
- Q: Are your products compliant with international standards? A: Absolutely. Our timing pulleys comply with ISO, DIN standards; sprockets comply with ANSI B29.1, ISO 606 standards; gears comply with AGMA, ISO, DIN standards, ensuring compatibility with global equipment.
- Q: What materials do you use for timing pulleys, sprockets, and gears? A: We use high-quality materials including aluminum alloy, carbon steel, stainless steel, brass, and cast iron. The material can be selected based on your application (load, environment, corrosion resistance requirements).
- Q: How long is the lead time for standard and custom products? A: Standard products: 3-7 working days; Custom products: 7-15 working days (depending on the complexity and order quantity).
- Q: Do you provide samples for testing? A: Yes, we can provide small samples for quality and compatibility testing. Please contact us for sample details and pricing.
- Q: What industries do your timing pulleys, sprockets, and gears serve? A: Our products are widely used in CNC machinery, robotics, automotive, agriculture, construction, packaging, textile, mining, and aerospace industries.
Get Your Custom Precision Timing Pulley, Sprocket & Gear Solution
Whether you need standard or custom timing pulleys, sprockets, or gears, we have the expertise to deliver high-quality, ISO/ANSI compliant products. Contact us today to discuss your requirements and get a competitive quote!
