Slurry Pump

Slurry Pump – High-Wear Resistant Slurry Pump for Mining, Power Plant & Industrial Applications

Key Features of Our Slurry Pump

• Superior Wear & Corrosion Resistance: Our slurry pumps feature wear-resistant over-flow components (impeller, pump liner, and back plate) crafted from high-chromium alloy, tungsten carbide composite, and nano-ceramic coating—materials that enhance wear resistance by 40% compared to industry averages. The corrosion-resistant design resists damage from acidic, alkaline, and abrasive slurries, while the unique impeller back vane design reduces slurry backflow and erosion, extending the service life of key components to 24+ months (far exceeding the industry average of 18 months). Ideal for transporting high-concentration, large-particle slurries in mining and metallurgy industries.
• High Efficiency & Stable Performance: Adopting CFD fluid simulation optimization, our slurry pumps feature a streamlined impeller and volute design that minimizes flow resistance, improving hydraulic efficiency by up to 25% and reducing energy consumption by 15%. The horizontal/vertical structure (optional) ensures stable operation even at high speeds, with a flow range of 30-2000m³/h and a head range of 15-130m, capable of handling solid-liquid mixtures with a maximum concentration of 60% (mineral pulp) and 45% (ash slurry). The motor direct drive or belt drive options (CV, ZVZ, CRZ types) allow flexible speed adjustment to adapt to different slurry concentrations.
• Anti-Clogging & Easy Maintenance: The large-flow channel design and optimized impeller structure prevent clogging by large solid particles (such as coal gangue and steel slag), eliminating costly downtime caused by blockages. Key wearing parts (impeller, liner) adopt a modular design, reducing replacement time by 50% and lowering maintenance costs by 30%. The split pump casing (horizontal middle-open or vertical split type) allows easy disassembly and inspection without moving the motor or pipeline, simplifying on-site maintenance and reducing labor costs.
• Robust Structure & Safety Compliance: The pump body adopts a double-shell structure (inner and outer metal layers) with a vertical middle-open design, allowing the outlet to be installed at 8 different positions at 45° intervals for flexible on-site installation. The shaft seal system (power seal, packing seal, or mechanical seal combination) effectively prevents slurry leakage, while the labyrinth gap seal between the impeller and back plate further reduces slurry leakage to the stuffing box. All slurry pumps meet international standards (ISO 9001, GB/T 13008-2016, ASTM standards) and undergo strict pressure and load testing before leaving the factory, ensuring safe and reliable operation in critical industrial applications.
• Customizable Design for Multiple Scenarios: We offer a full range of slurry pump types, including single-stage/single-suction slurry pumps, multi-stage slurry pumps, horizontal slurry pumps, and vertical slurry pumps, tailored to different industrial scenarios. Customizable options include material of wearing parts, pump size, flow rate, head, and drive mode—we can provide one-on-one solutions according to the characteristics of your slurry (particle size, concentration, corrosiveness), such as optimizing the flow channel gap for printing and dyeing sludge or upgrading the corrosion-resistant seal for acidic steel slag slurry.

Versatile Applications of Slurry Pump

• Mining Industry: Transporting mineral pulp, tailings, and ore slurry in concentrators and mines—our mining slurry pumps are designed to handle high-abrasion, high-concentration slurries, ensuring continuous operation in ore dressing processes. Suitable for coal washing plants to transport coal slurry and heavy medium, solving the problem of easy clogging by large coal blocks and gangue.
• Power Plant: Hydraulic ash removal in thermal power plants, transporting fly ash slurry and desulfurization wastewater—our slurry pumps feature enhanced wear resistance to handle the abrasive nature of fly ash, reducing maintenance frequency and ensuring stable operation of the ash removal system. Also used in power plant slag treatment to transport steel slag sludge.
• Metallurgy & Chemical Industry: Transporting steel slag sludge, smelting slurry, and corrosive chemical slurry (containing crystals or acidic/alkaline components)—the corrosion-resistant and wear-resistant design adapts to harsh chemical and metallurgical working conditions, preventing component damage and slurry leakage.
• Dredging & Environmental Protection: River and lake dredging, sediment transport, and landfill leachate treatment—our slurry pumps have strong anti-clogging performance, capable of transporting sediment and sludge with large particles, supporting environmental protection and water conservancy projects.

Product Specifications

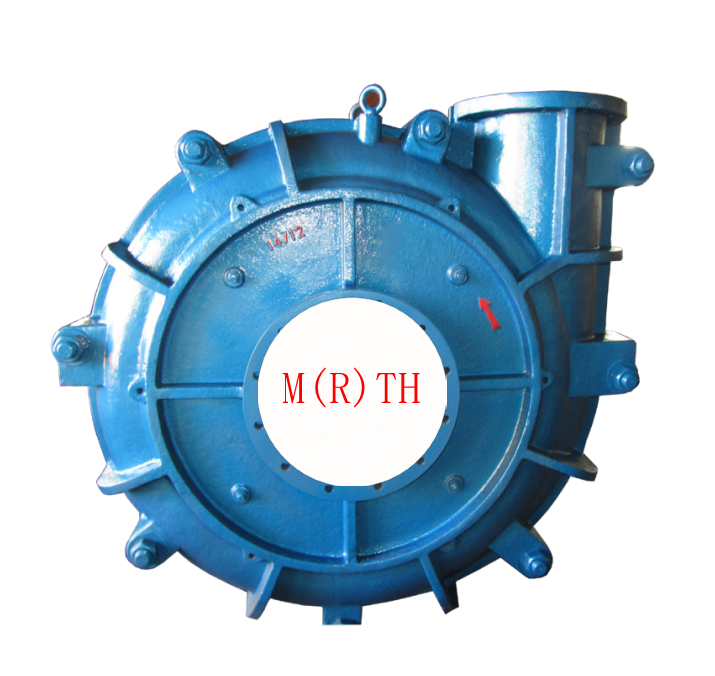

• M(R)TH type:M(R)TH series pumps are contain cantilever and horizontal centrifugal pumps,which apply to transport slurry with strong
  corrosion proof and high concentration for such industries as Metallurgy, mine, coal,power,buliding etc. This kind of pump
  can be used in multi stages. M(R)TH pump body consist of replaceable metal or rubber lining and its impeller is made of
  wear resistant metal or rubber.The shaft seal of M(R)TH series pump may adopt packing seal or centrifugal.

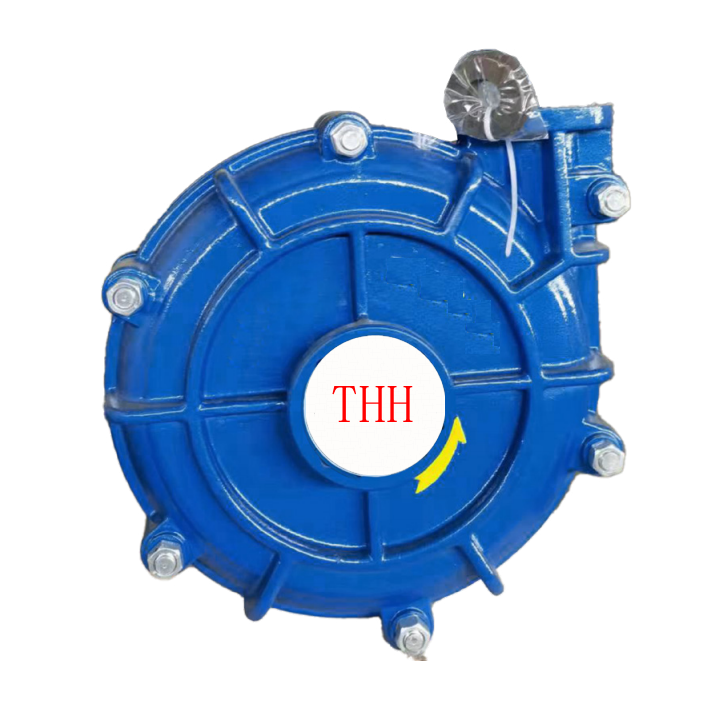

• THH type

THH type slurry pump is a single-stage, single-suction,cantilever, double-shell,horizontal centrifugal slurry
pump, which are widely used in metallurgy,electric power,chemical industry, mining, paper making, building materials and
other industries to transport strong abrasive slurry.The pump is used for high concentrations and high lift conditions, especially
suitable for high lift conditions that general single -stage pumps cannot be transported.

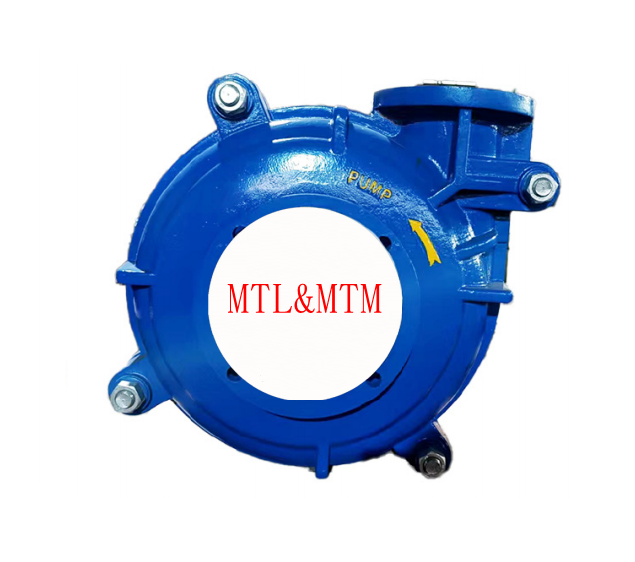

• MTL&MTM type:

MTL&MTM type slurry pump is a single stage, single suction, cantilever, double shell, horizontal centrifugal slurry pump,
widely used in metallurgy, electric power, chemical, mining, papermaking, building materials, and other industries to
transport light abrasion slurry.This pump is suitable for high flow, low concentration, and low lift conditions. When the
rotational speed is low,it can transport strong abrasion and high concentration slurry.Compared with the MTH series slurry                      pump of the same caliber, it has small volume, light weight, and high cost performance.

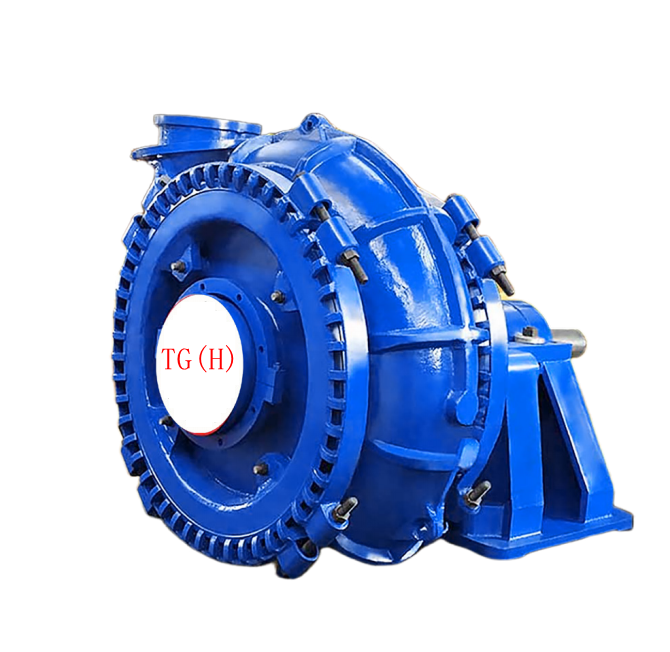

• TG(H) type:

The TG (H) series slurry pump is a single stage, single suction,single shell, cantilever, horizontal centrifugal slurry pump, mainly
used for the transportation of strong abrasive materials that are too large to be transported by ordinary slurry pumps, such as
coal preparation heavy media transportation, dredger dredging,river dredging, mining and metal smelting slag blasting, and the
transportation of root crops,The pump is particularly suitable for large flow, high concentration, and high lift conditions.

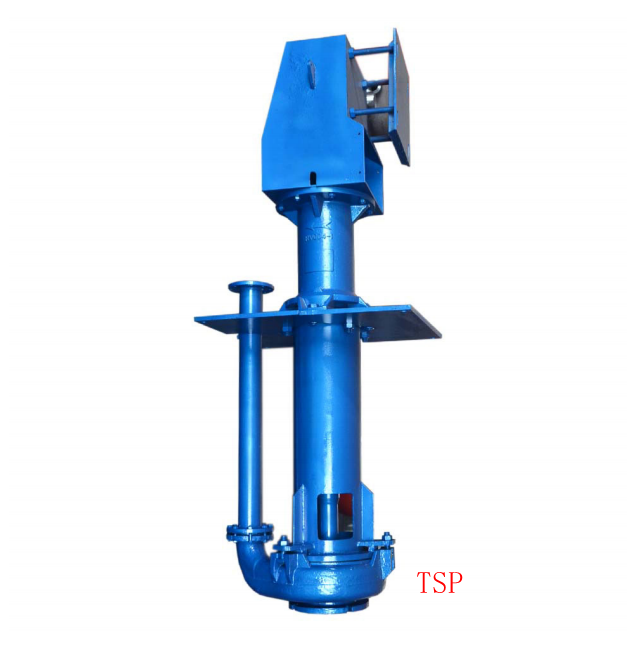

• TSP type:

TSP series slurry pump is a single stage, single suction, cantilever, vertical centrifugal structure. It is suitable for
conveying abrasive, coarse particles, and high concentration slurry without any need for shaft seal water, and can work
normally even under insufficient suction conditions. This pump is particularly suitable for various pit pumps in mines and coal
preparation systems.

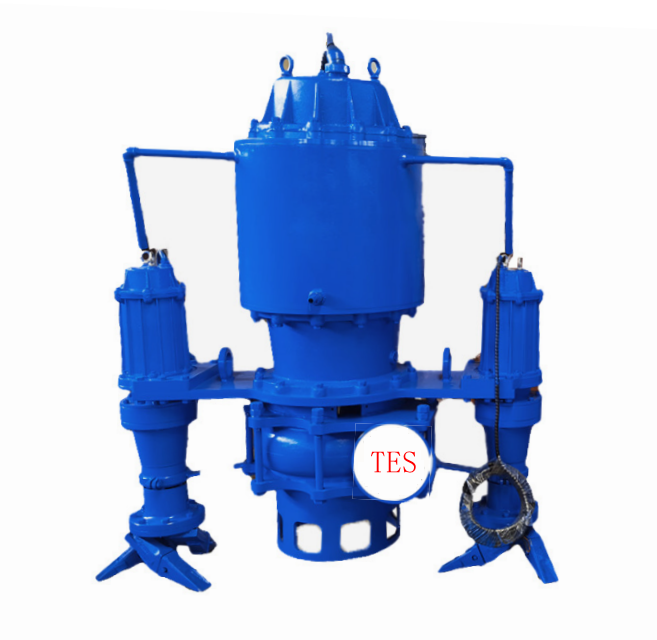

• TES type:

TES series submersible slurry pump is a single stage, single suction, cantilever, submersible slurry pump .Widely used
in mining, electric power, metallurgy, coal, environmental protection and other industries to transport slurry containing
abrasive solid particles. In the chemical industry, some corrosive pastes containing crystals can be transported.

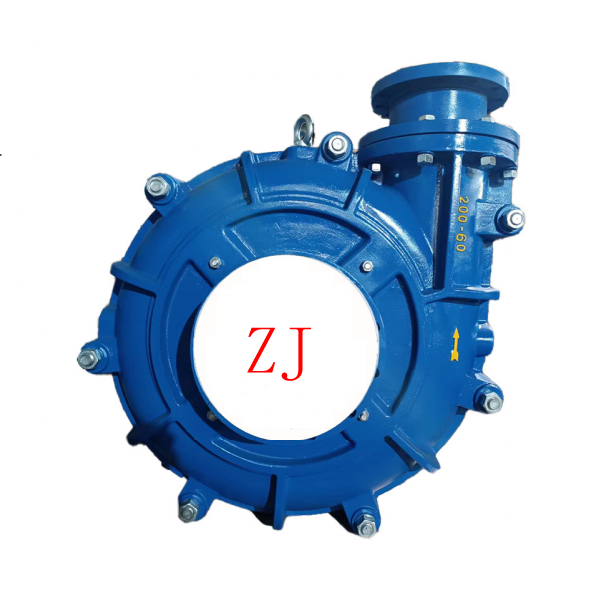

• ZJ type:

ZJ series slurry pump is a single stage, single suction, cantilever, double shell, horizontal centrifugal slurry pump.Widely used
in electric power, metallurgy, mining, coal, building materials,chemical and other industries.This pump is suitable for working
conditions with high slurry concentration and high lift, especially  for conveying filter press feed, power plant ash, and mine
tailings.The pump can be used in multiple stages in series

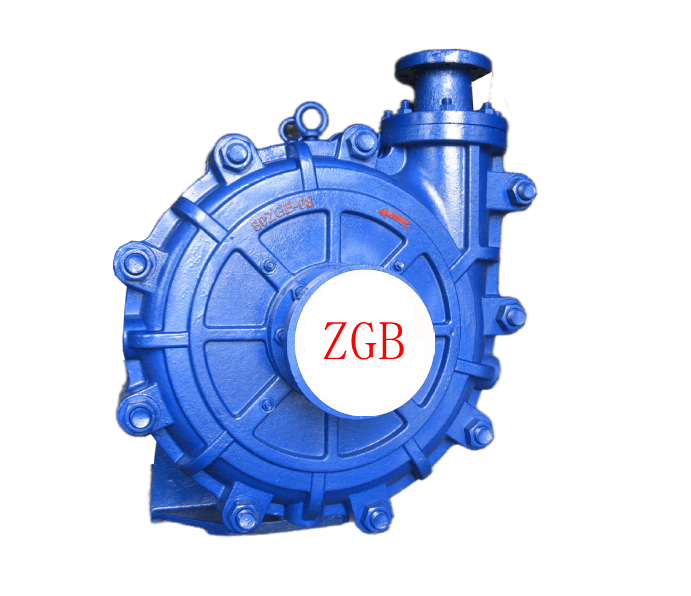

• ZGB Type:

ZGB series slurr y pump is a single stage, single
suction,cantilever, double shell, horizontal centrifugalslurry pump. Widely used in electric power, metallurgy, mining, coal,
building materials, chemical and other industries.This pump is suitable for working conditions with low slurry concentration
and high lift, especially for conveying filter press feed, power plant ash, and mine tailings.The pump can be used in multiple
stages in series.

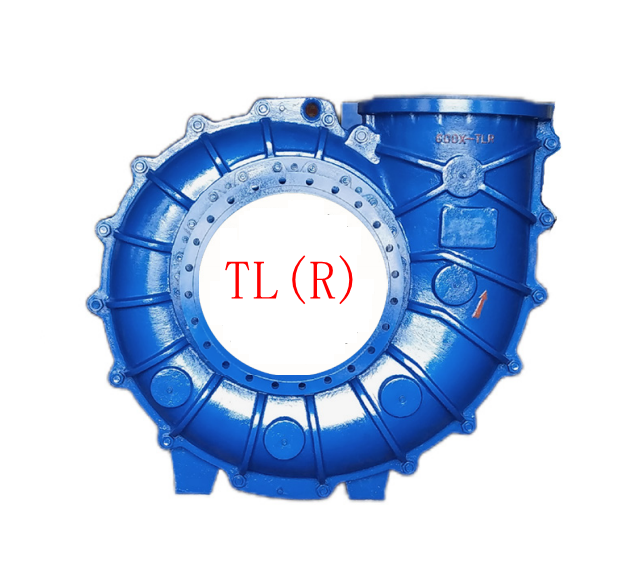

• TL(R) Type:

TL(R) model desulphurization pump is the new generation high efficiency energy saving product elaborately researched and
developed by our company through absorbing the technical specifications of flue gas desulphurization project, aiming at the
characteristic of FGD system of transporting medium through pump in thermal power plant.
TL(R) model desulphurization pump is mainly used for the
circular transportation of limestone, lime and gypsum slurry in thermal power plant. It can be also used for the transportation
of slag slurry containing corrosive solid particles in metallurgy,mine, coal, construction material and chemical industry etc.
industrial departments.
