Motor Housing

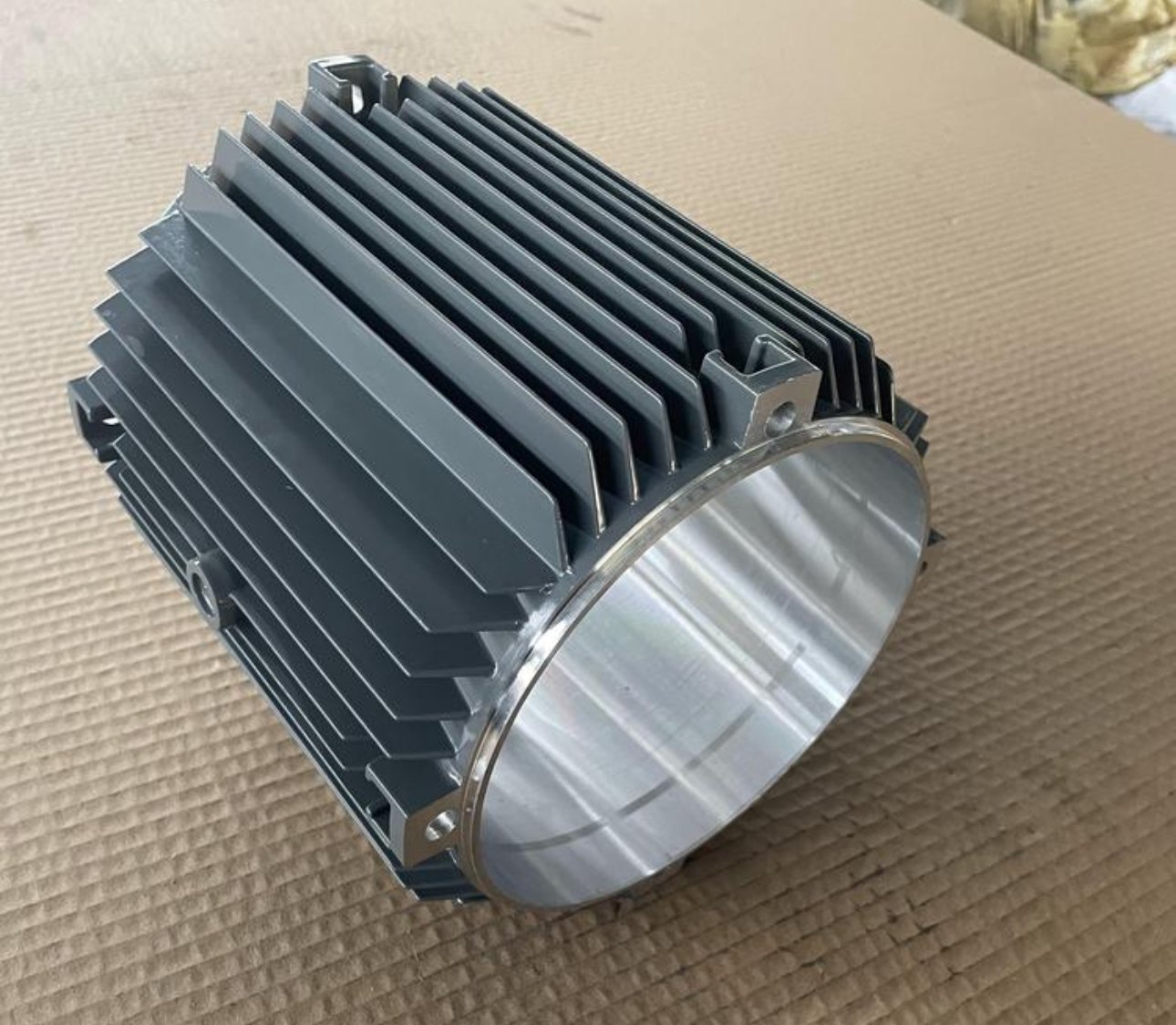

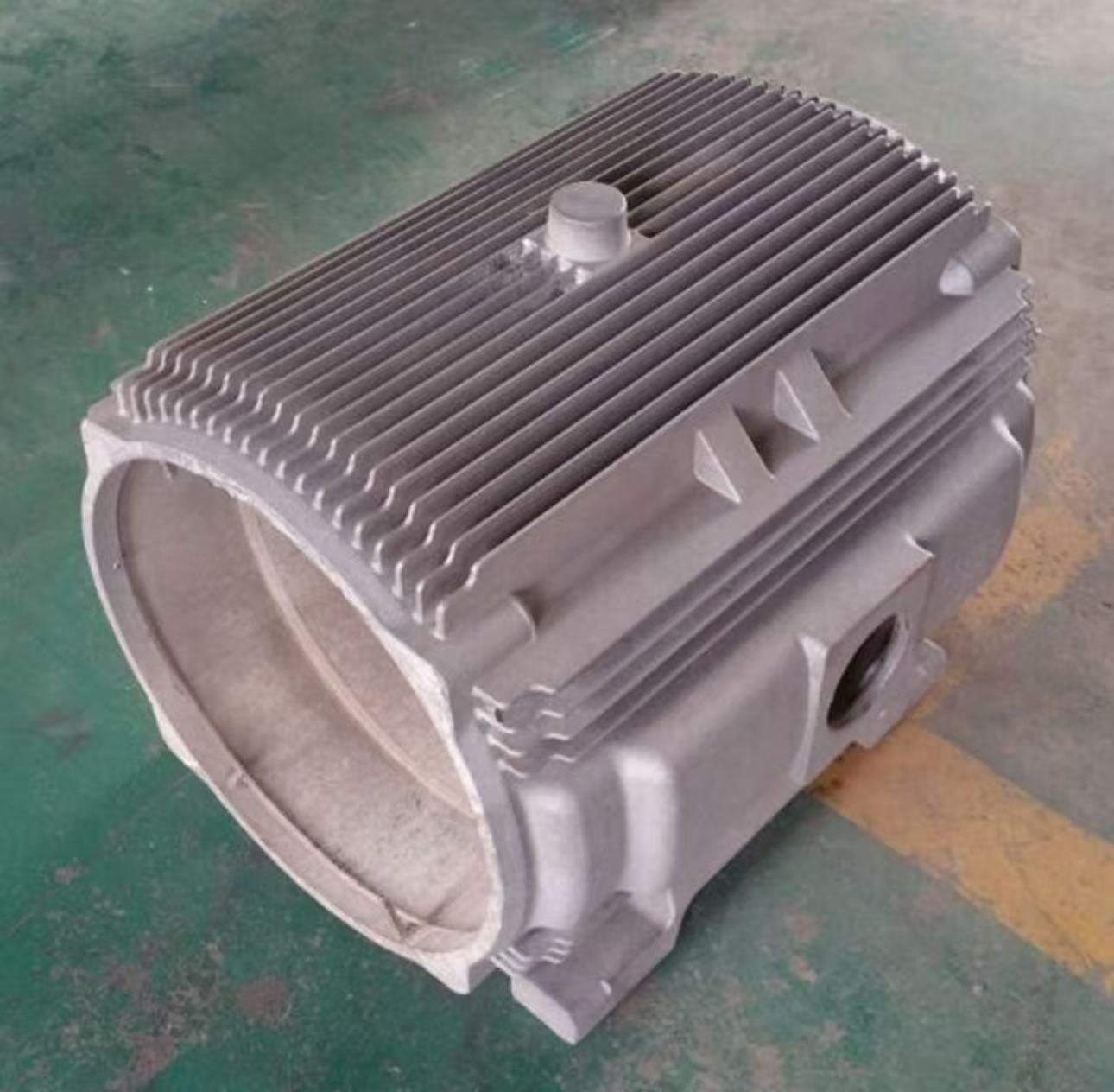

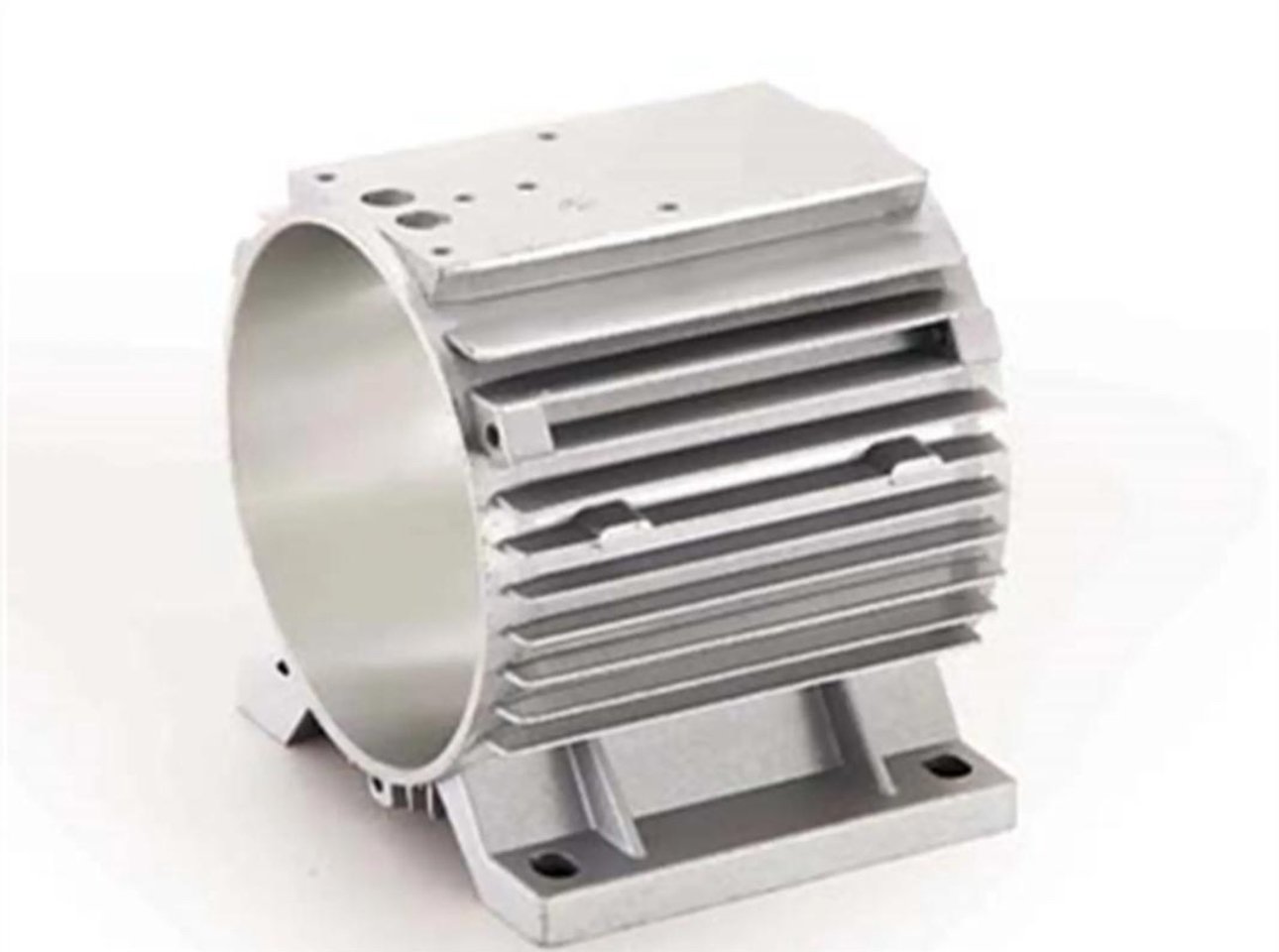

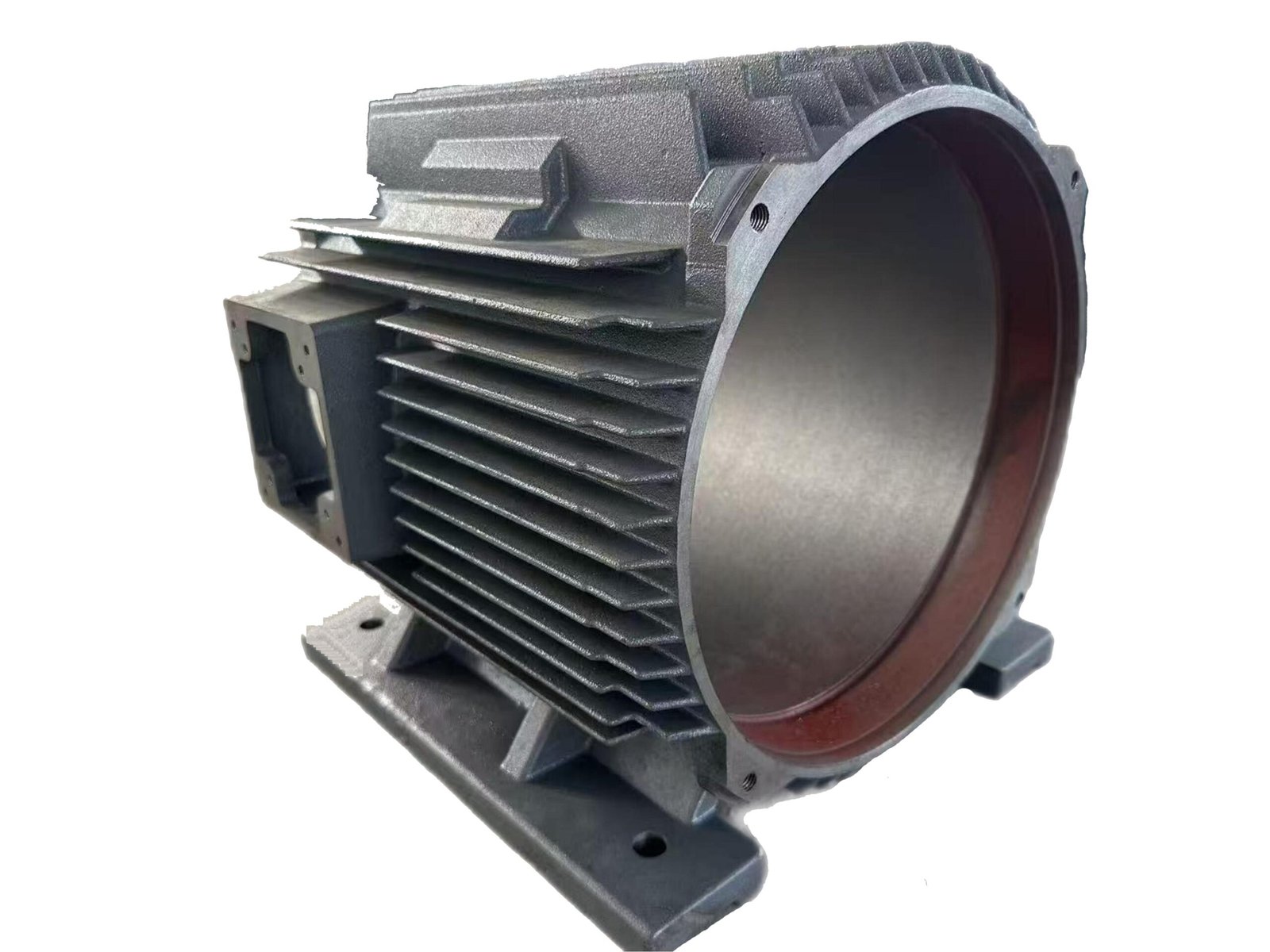

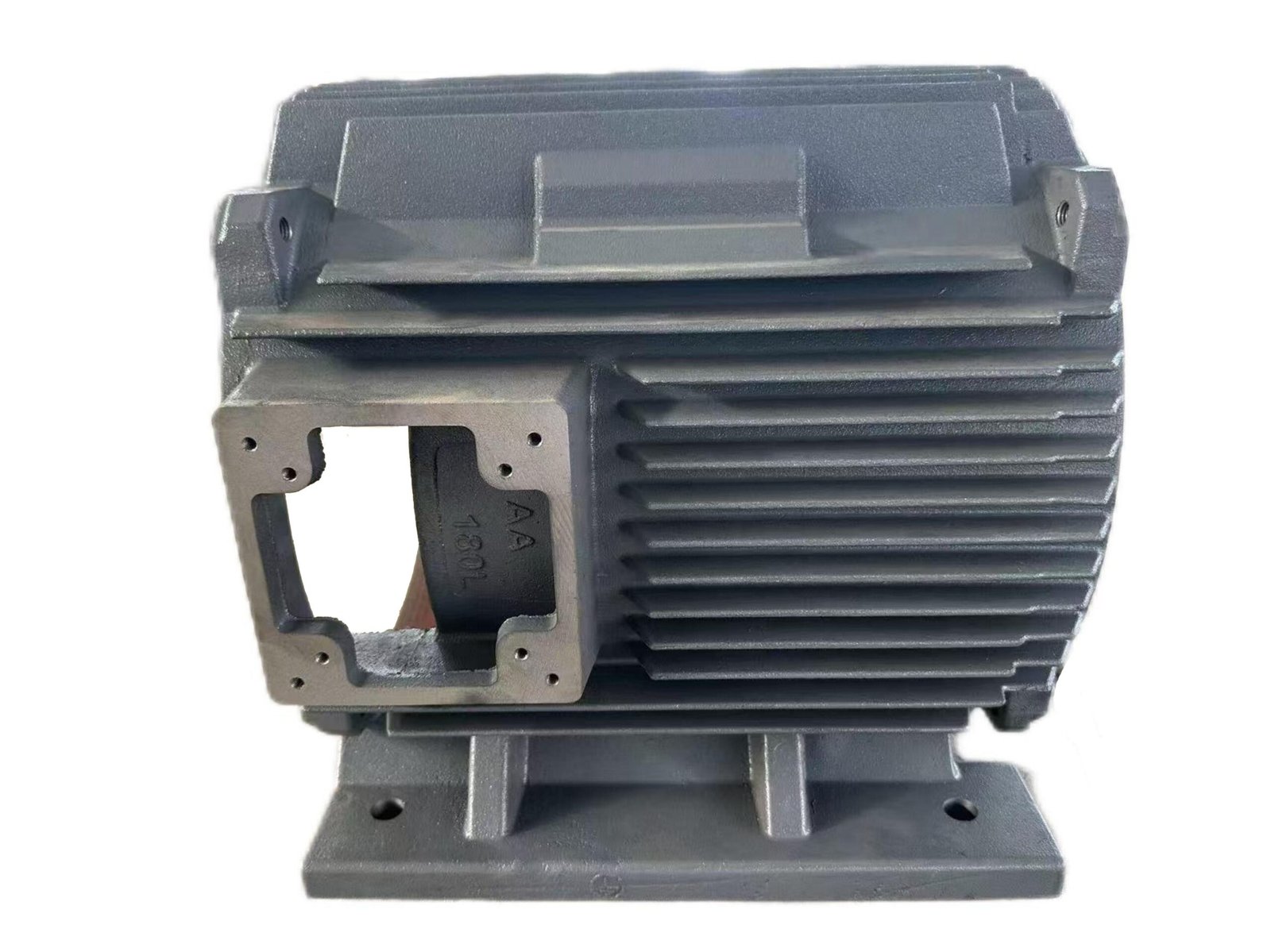

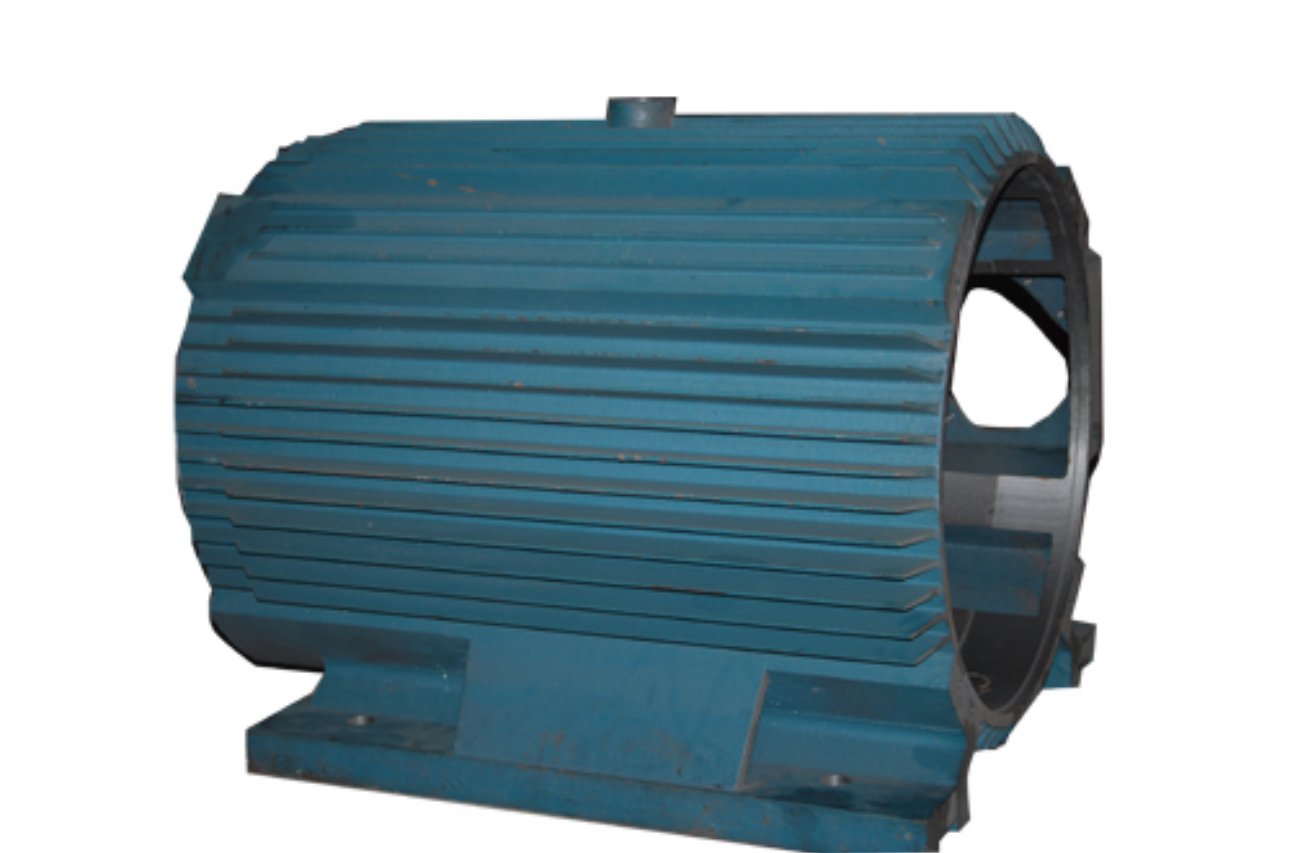

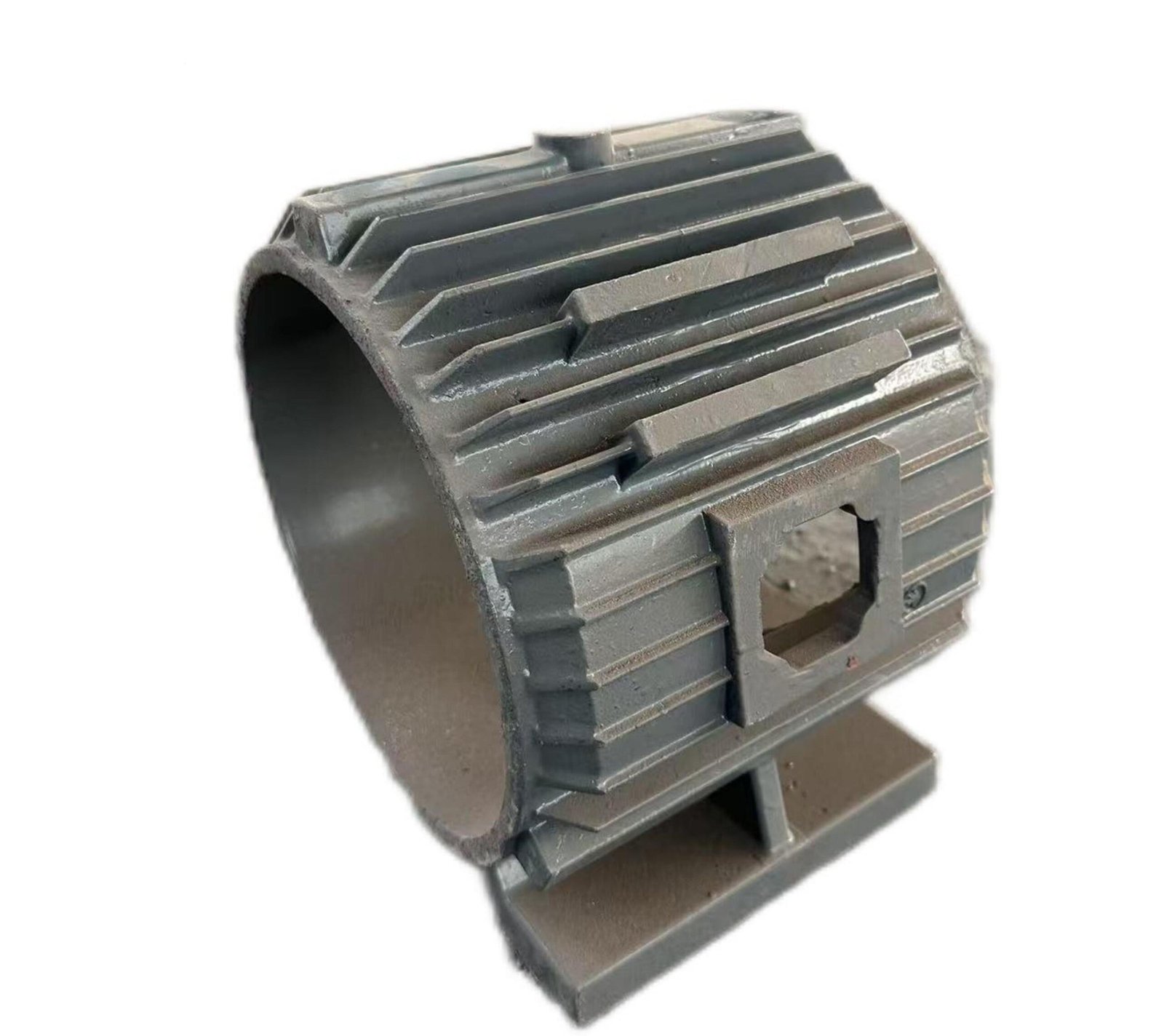

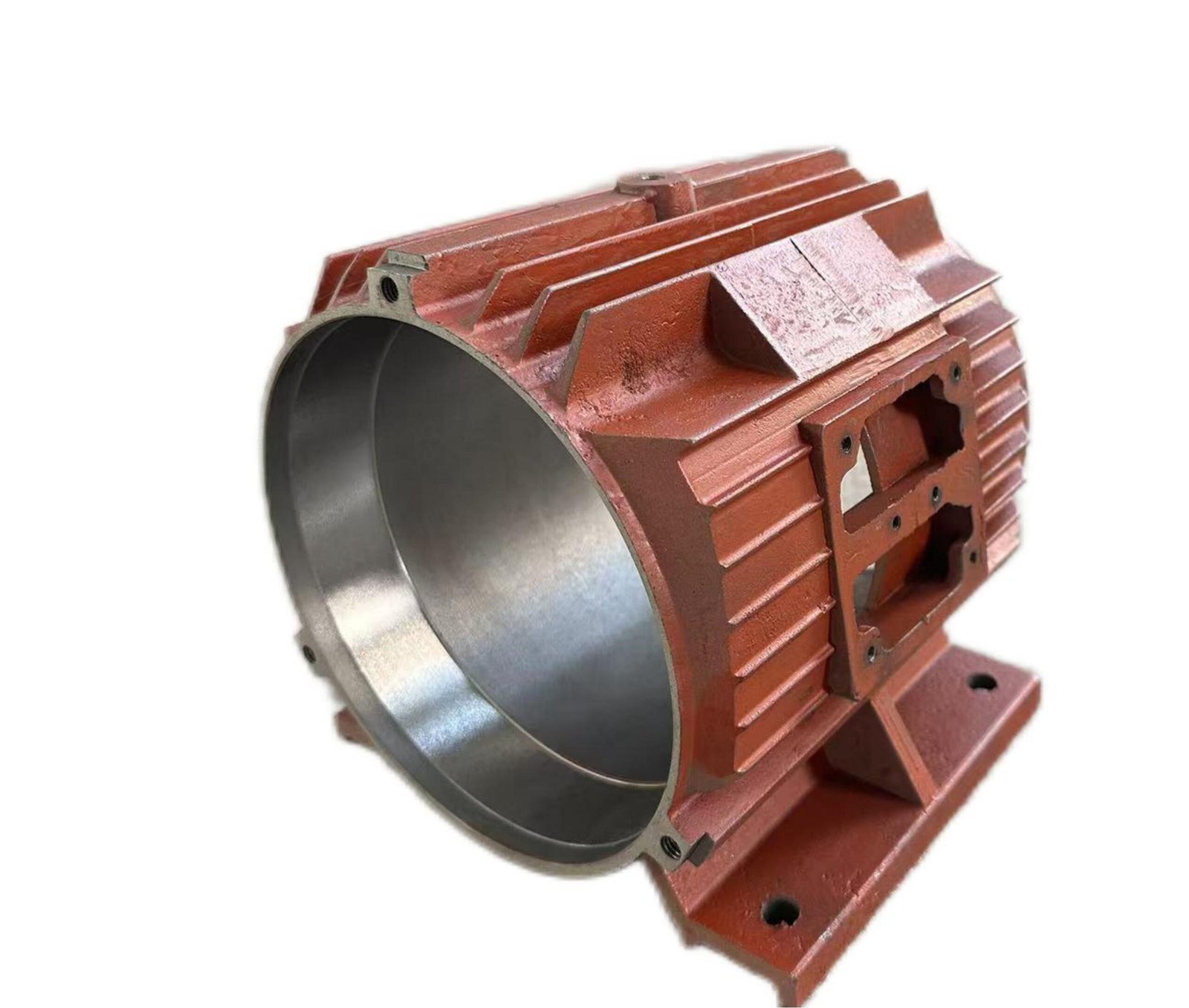

Cast Iron Motor Housing: Heavy-Duty, Vibration-Resistant Enclosures for Industrial Motors
As a leading manufacturer of cast iron motor housings, we specialize in ductile iron (SG Iron) and grey iron (GG20, GG25, HT200) motor enclosures engineered for high-torque, heavy-duty industrial applications. Our cast iron motor casings are designed to deliver exceptional structural rigidity, vibration dampening, and long-term durability—critical for reliable motor performance in harsh working environments.
Key Material Advantages of Cast Iron Motor Housings
- Superior Rigidity & Vibration Resistance
Cast iron (especially ductile iron) offers unmatched stiffness and damping properties, minimizing motor vibration and noise during high-speed or heavy-load operation. Ideal for industrial pumps, compressors, and generators where stability is non-negotiable.
- Exceptional Durability & Impact Resistance
Grey iron (GG20/GG25) and ductile iron motor housings withstand mechanical impacts, temperature fluctuations, and harsh industrial conditions, ensuring a longer service life than aluminum alternatives for heavy-duty use.
- Heat Dissipation Efficiency
Cast iron’s natural thermal conductivity enables effective heat transfer, preventing motor overheating and extending the lifespan of internal components (windings, bearings).
- Cost-Effective for Heavy-Duty Applications
Compared to stainless steel, cast iron motor enclosures provide a cost-efficient solution for high-torque motors, balancing performance and budget for industrial-scale operations.
Custom Cast Iron Motor Housing Solutions
- Material Options: Grey Iron (GG20, GG25, HT200), Ductile Iron (SG450/10, SG500/7), Custom grades available.
- Design Flexibility: OEM/ODM services supported by 2D/3D CAD (SolidWorks, AutoCAD) customization. We tailor motor frame size, bearing seat dimensions, mounting brackets, and port positions to your exact requirements.
- Protection Ratings: IP54, IP55, IP65 rated enclosures for dust, moisture, and oil resistance. Optional TEFC (Totally Enclosed Fan Cooled) designs for extreme environments.
- Manufacturing Process: Sand casting (resin sand for precision), CNC machining for tight tolerances (±0.02mm), surface treatment (paint coating, anti-rust oil, electrostatic spraying) to enhance corrosion resistance.
Quality Assurance & Certifications
Our cast iron motor housings comply with international standards: ISO 9001, ASTM A48 (grey iron), ASTM A536 (ductile iron), CE, and RoHS. Each unit undergoes strict quality inspections:
- Dimensional accuracy testing (CMM measurement)
- Vibration and pressure testing
- Material composition analysis (spectrometer)
- Surface finish inspection (Ra ≤ 3.2μm)
Typical Applications
- Industrial pumps (centrifugal pumps, chemical pumps, sewage pumps)
- Compressors and generators
- Heavy-duty electric motors (5HP-500HP)
- Agricultural machinery and construction equipment
- Marine and offshore auxiliary motors
- Mining and metallurgy equipment
